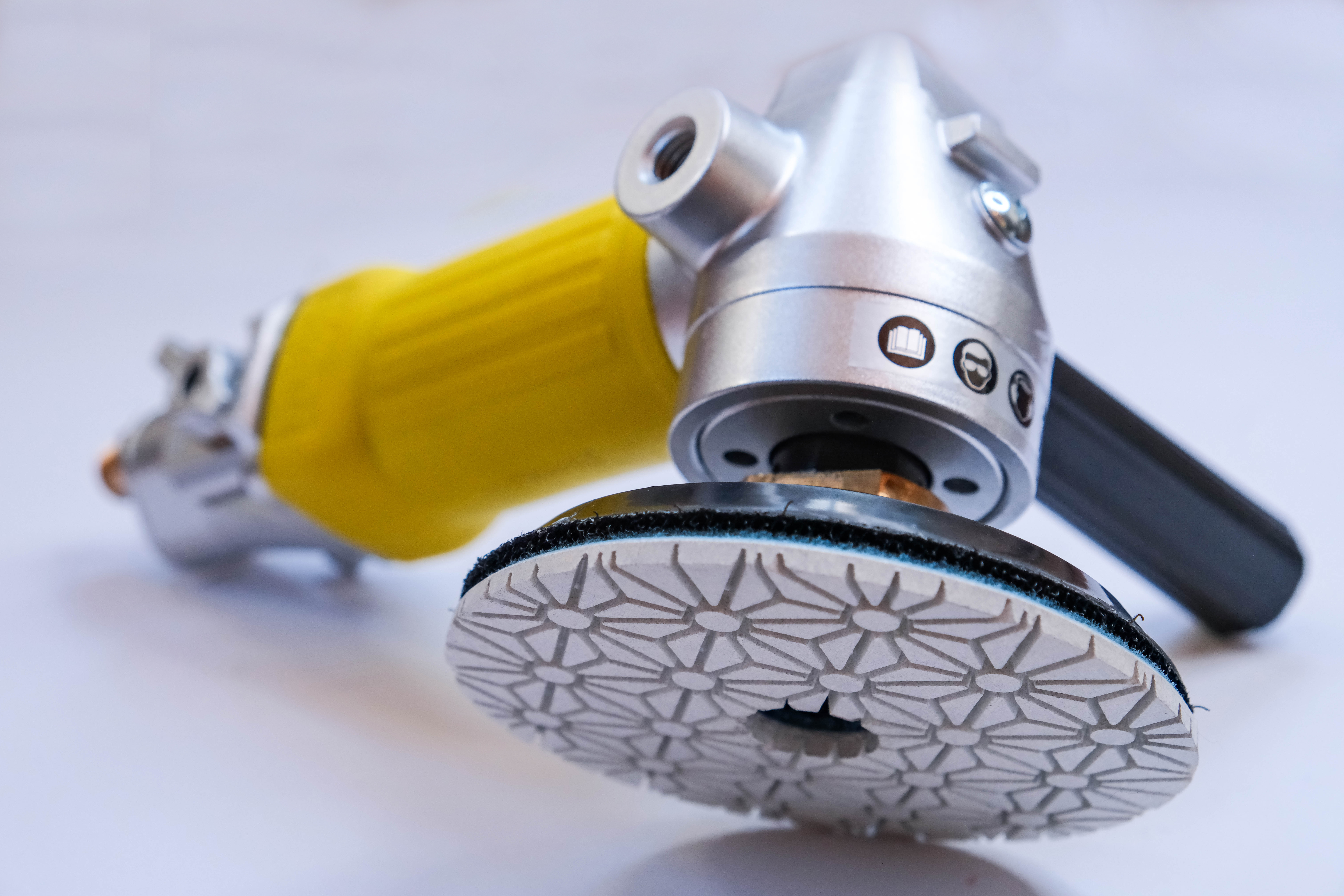

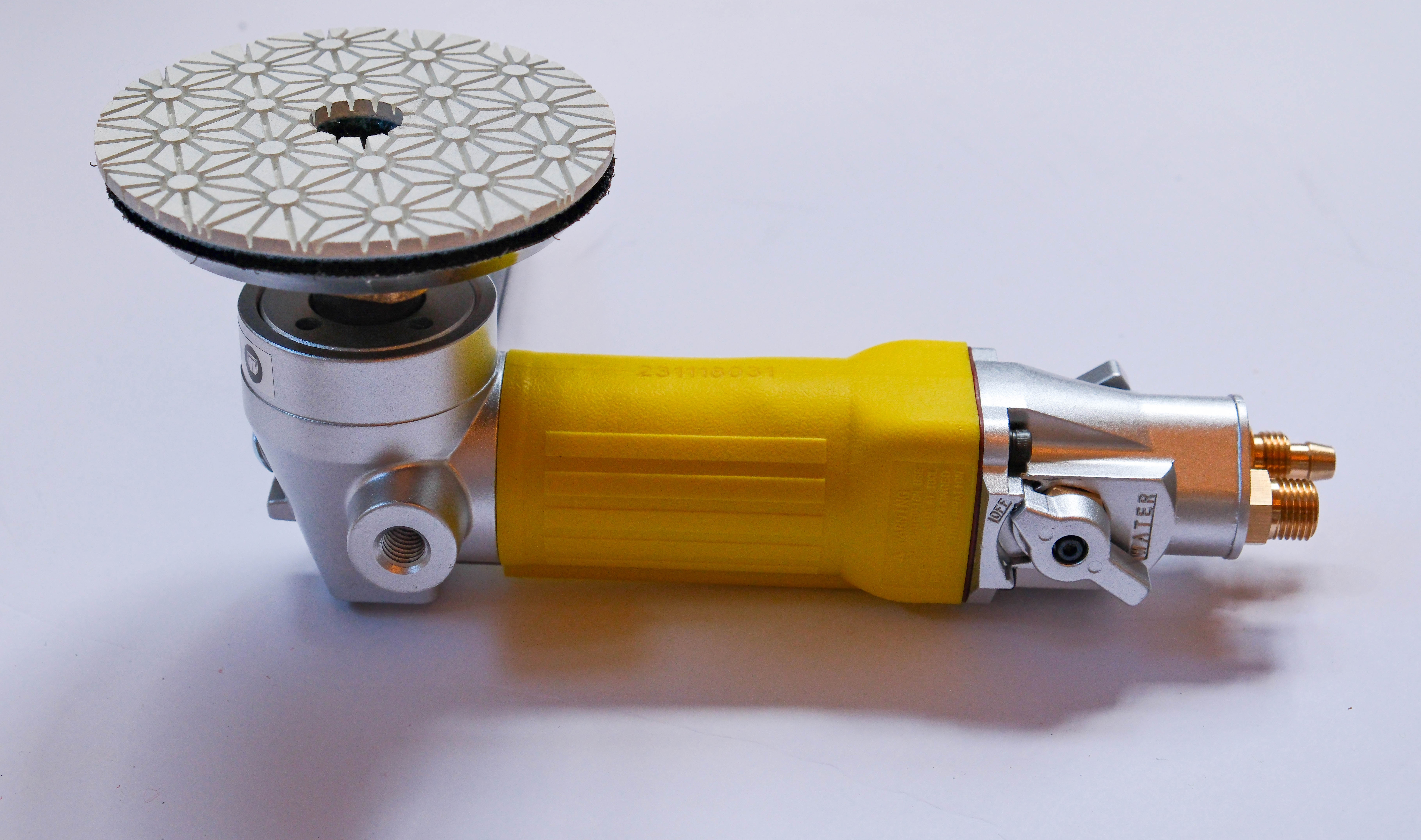

Barracuda Rear Exhaust Pneumatic Polishing Tool

The Barracuda Air Polisher is engineered for continuous production use, making it a top choice for stone polishing professionals. Lightweight and compact, it stands out as one of the most durable tools in its class.

Featuring water-tight sealed bearings, the Barracuda delivers smooth rotational speeds and extended service life. Both the air and water controls are intuitively placed for operator convenience, enhancing ease of use during long work sessions.

The tool supports 3", 4", and 5" polishing discs, offering excellent versatility. Its rear exhaust design directs air away from the operator's hands, aided by a built-in hose protector for added comfort and safety.

Specifications:

• Air Consumption: 16 CFM / 0.45 CMM

• Operating Air Pressure: 90 PSI

• Free Speed: 5,500 RPM

• Spindle Thread: 5/8"-11

• Air Inlet: 1/4" NPT

• Tool Length: 10-1/4" (261 mm)

• Vibration Level: 2.5 m/s²

• Sound Level: Min 92.3 dB / Max 104.9 dB

• Required Air Compressor: 5 HP minimum

• Maximum Pad Diameter: 5" (127 mm)

• Weight: 2.5 lbs (1.23 kg)

• Features: Variable Speed, Extreme Torque

The Barracuda is built to deliver high performance and extreme durability in demanding environments.

.

Air Polisher Motor with Pinion Gear Replacement for Barracuda Polisher

At VenomPads.com, we make it easy for our customers to rebuild their polishers.

To replace the motor, simply remove the tailpiece, take out the old motor, and install the new one. This replacement can typically be done successfully 1–2 times.

After the second replacement—when the bevel gear becomes significantly worn—we recommend sending your polisher to our repair shop for a complete rebuild. We're here to help keep your equipment running like new.
